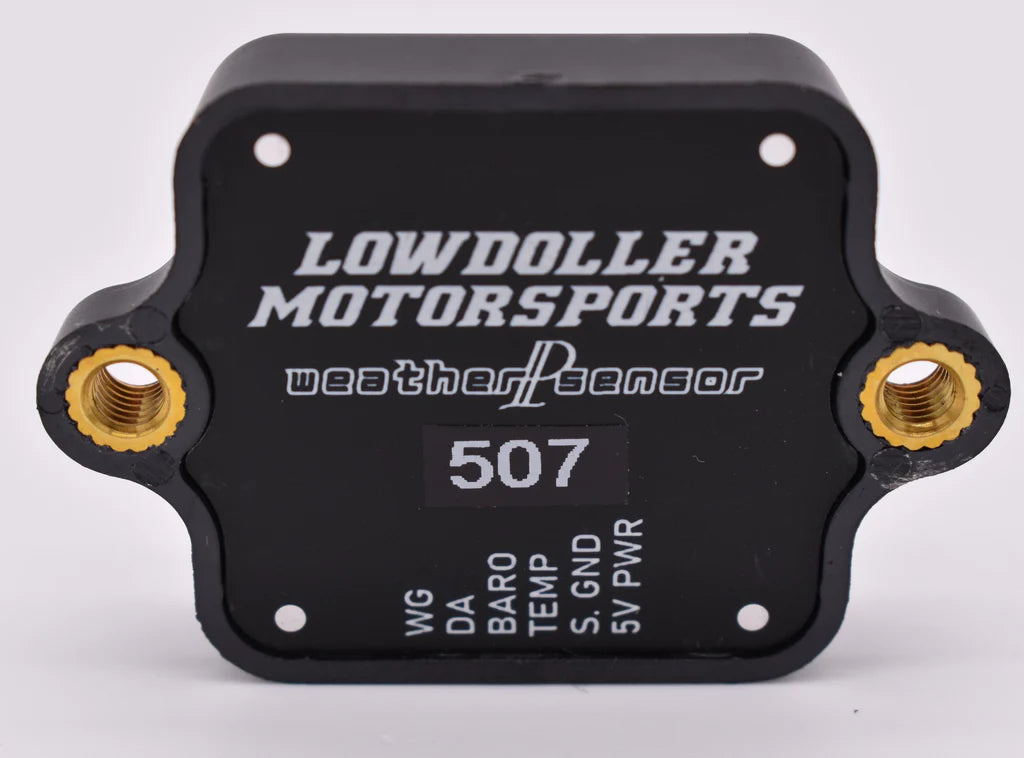

PRO SERIES: Weather Sensor

PRO SERIES: Weather Sensor
SKU: PS-Weather
The PI PRO SERIES Weather Sensor is the first sensor of it's kind designed specifically for motorsports applications with unique features to revolutionize and improve any racing program.

If you have ever battled performance changes between days, tracks, or even from event schedule changes, this is just the sensor to integrate for maximizing consistency and performance. Eliminate all worry or dependency of cell phone reception to look up weather; your weather needs will now always be with you.

These signals can be fed into most aftermarket ECU's with the potential for logging, displaying weather on the dash, AND OR closed loop tuning changes. (We provide the sensor signal - the rest is up to YOU!)

These sensors can be programmed at the OEM to provide different outputs parameters or to use different units of measurement. (Example: exchange Temperature output with Relative Humidity). Please add Custom Weather Programming to the cart and choose your options!

UNDER THE HOOD OF THE PRO SERIES

This series contains a powerful CPU which takes in data from multiple onboard sensors, compiles it using sophisticated algorithms, and provides the user with cleanly compensated and useful data.

Designed and built in the USA!

Design Features
5V Sensor Voltage Supply

0-5V Analog Weather Outputs

High Precision Sensing

Low Power Consumption

Lightweight Aluminum Mounting Baseplate (mounting hardware included)

Milspec Connector (Mating connector and terminals included)

Standard Sensor Outputs (Analog 0-5V)
1) Temperature [F] (-20 to 120F)

2) Barometric Pressure (Barometer) [inHg] (16 to 32inHg)

3) Density Altitude [ft] (-3000 to 12000ft)

4) Water Grains [GPP] (0 to 150GPP)

WEATHER SENSOR INSTRUCTIONS

Rollbar Mounting Options
