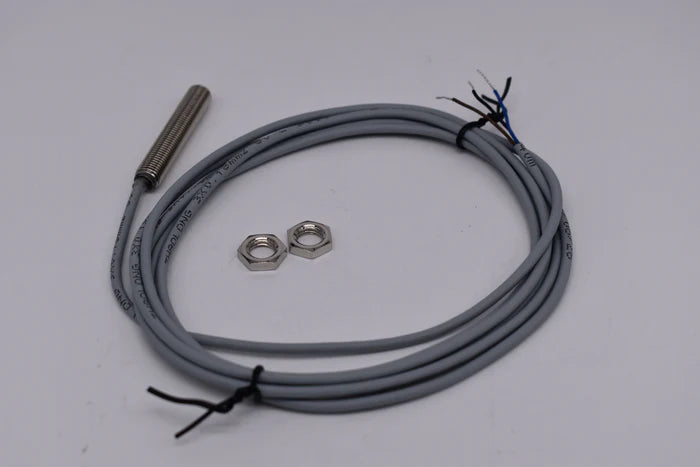

LDM-MAG-HALL-M8-NO-NP Speed Sensor PN: 1520008

M8-1.0 Hall Effect Speed Sensor.

Triggered by magnets (Not ferrous material)
M8x1.0 body
Built in LED light for easy setup
Nickel plated
Detection range 0.1MM to 10MM
Flush mount
Supply voltage 10V-30V
Short circuited/reverse protection built in.
Working temperature -13F to 176F
IP67 rated (water proof)
Normally open signal
Max switching frequency 1000HZ

wiring:

Brown = power supply (10-30VDC)

Blue = Clean ground

Black = Signal wire (Outputs 0V) to data logger.
