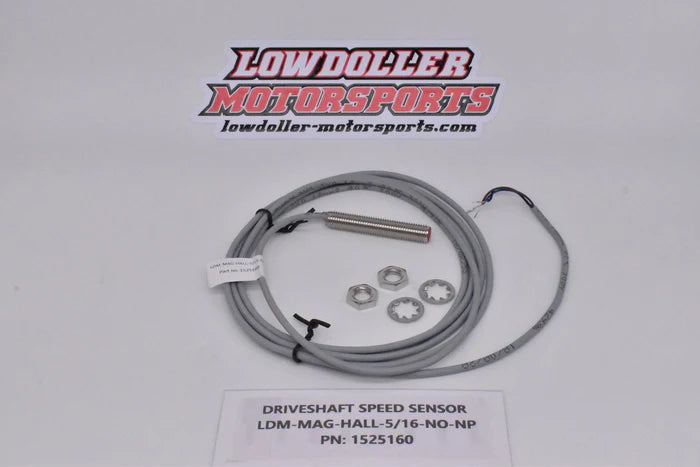

LDM-MAG-HALL-5/16-NO-NP Speed Sensor PN: 1525160

5/16"-24 hall effect speed sensor.

Triggered by magnets (Not ferrous material)
5/16"x24 body
Built in LED light for easy setup
Nickel plated
Detection range 0.1MM to 10MM
Flush mount
Supply voltage 10V-30V
Short circuited/reverse protection built in.
Working temperature -13F to 176F
IP67 rated (water proof)
Normally open signal
Max switching frequency 1000HZ

wiring:

Brown = power supply (10-30VDC)

Blue = Clean ground

Black = Signal wire (Outputs 0V) to data logger.
