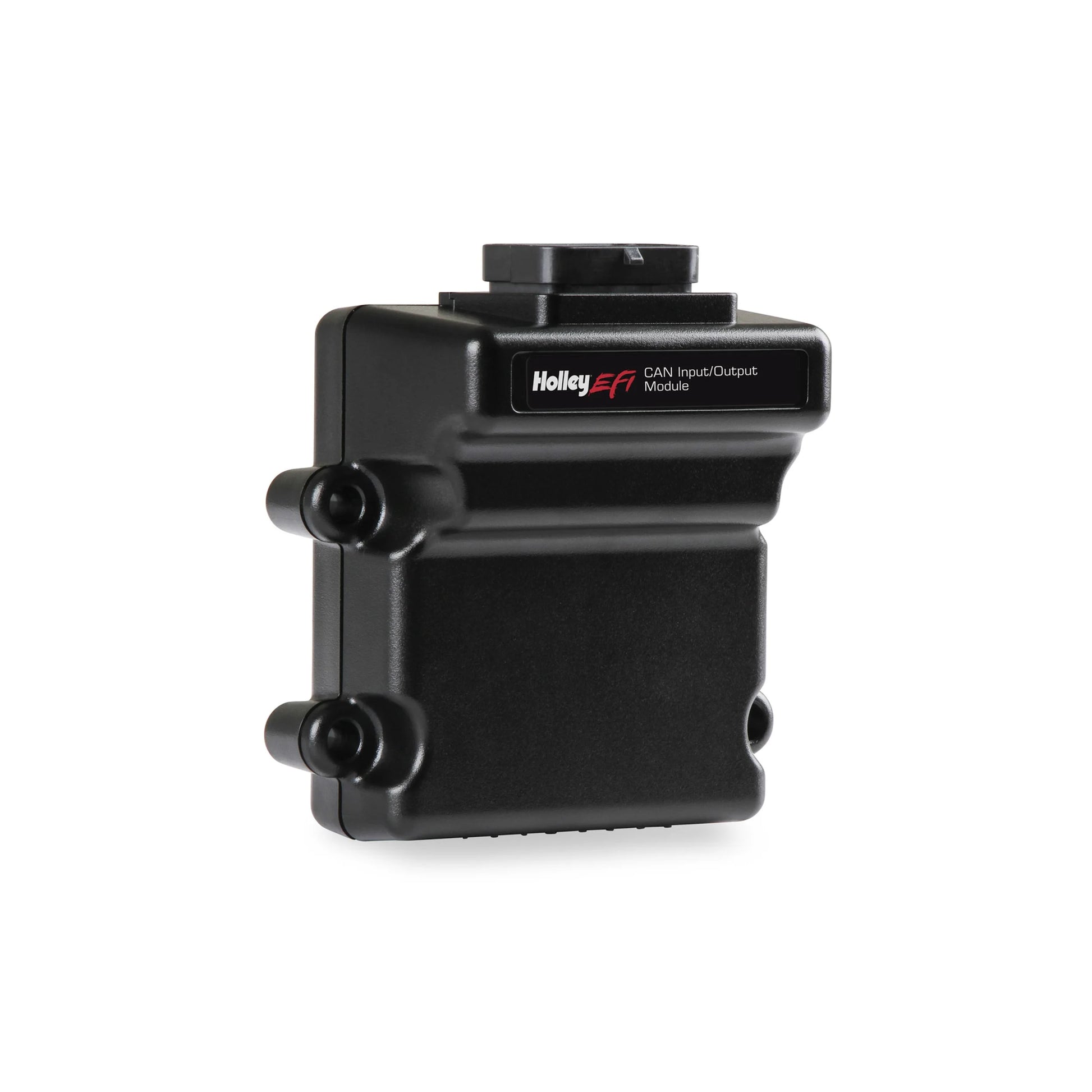

Holley EFI CAN Input/Output Module Kit 554-165

The Holley EFI CAN Input/Output Module can be added to Holley EFI HP, Dominator, Terminator X and Terminator X Max EFI installations. This CAN module will add (8) inputs and (8) outputs to the system which can be used to control additional accessories or provide critical sensor inputs. This module is perfect for anyone wanting to enhance the capabilities of their current ECU and have already tapped out their ECU's Input/Output channels.
Features:
- Perfect For Anyone Wanting Their Holley EFI ECU To Control More Functions Or Monitor More Data Channels
- HP And Terminator X EFI Installations With Only (4) Inputs And (4) Outputs Can Now Add More Functionality To Their EFI System
- Expand Dominator ECU Input / Output Control With (8) Additional Inputs And Outputs

- Inputs Can Be Used For Things Such As:
- Switch 12V Toggle Switches – Can Be Configured For External Mechanical Relays Or Setup As Digital Switches Via A Holley EFI Dash
- Ground Input For Brake Pedal Switch
- 5V Analog Inputs For Sensors Like Fuel Pressure, Oil Pressure, Or Nitrous Bottle Pressure
- Thermistor Inputs For Coolant Temperature Sensors

- Outputs Can Be Used For Things Such As:
- Switch Low (Ground) For Relay Control Or Activation
- Switch Low PWM (Ground) For PWM Fan Control, PWM Fuel Pump Control, Or Other PWM Controlled Devices

- Adjustable Broadcast Rate For Each Channel From 0–100 Hz
- Includes A Pre-Terminated CAN Harness Allowing Quick Installation Into Any Existing Holley EFI System
