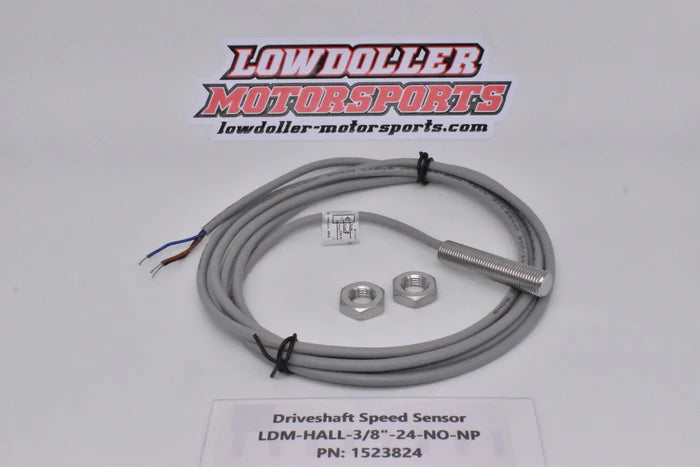

Driveshaft Speed Sensor LDM-HALL-3/8”-24-NO-NP PN: 1523824

Looking for an affordable replacement driveshaft speed sensor? Tired of setting gaps only to find it still isn’t reading properly? Well, here’s the solution!


built in LED indicator light for setup
Triggered by ferrous material (Not magnets)
3/8” 24
Stainless steel body
Detection range 0.1MM to 1MM
Flush mount
Supply voltage 10V-30V
Short circuited/reverse protection built in.
Working temperature -13F to 176F
IP67 rated (water proof)
Normally open signal
Max switching frequency 8,000HZ


wiring:

Brown = power supply (10-30VDC)

Blue = Clean ground

Black = Signal wire (Outputs 0V) to data logger.
